The hardware PTZ desk for control rooms, corporate AV and multi-camera installs

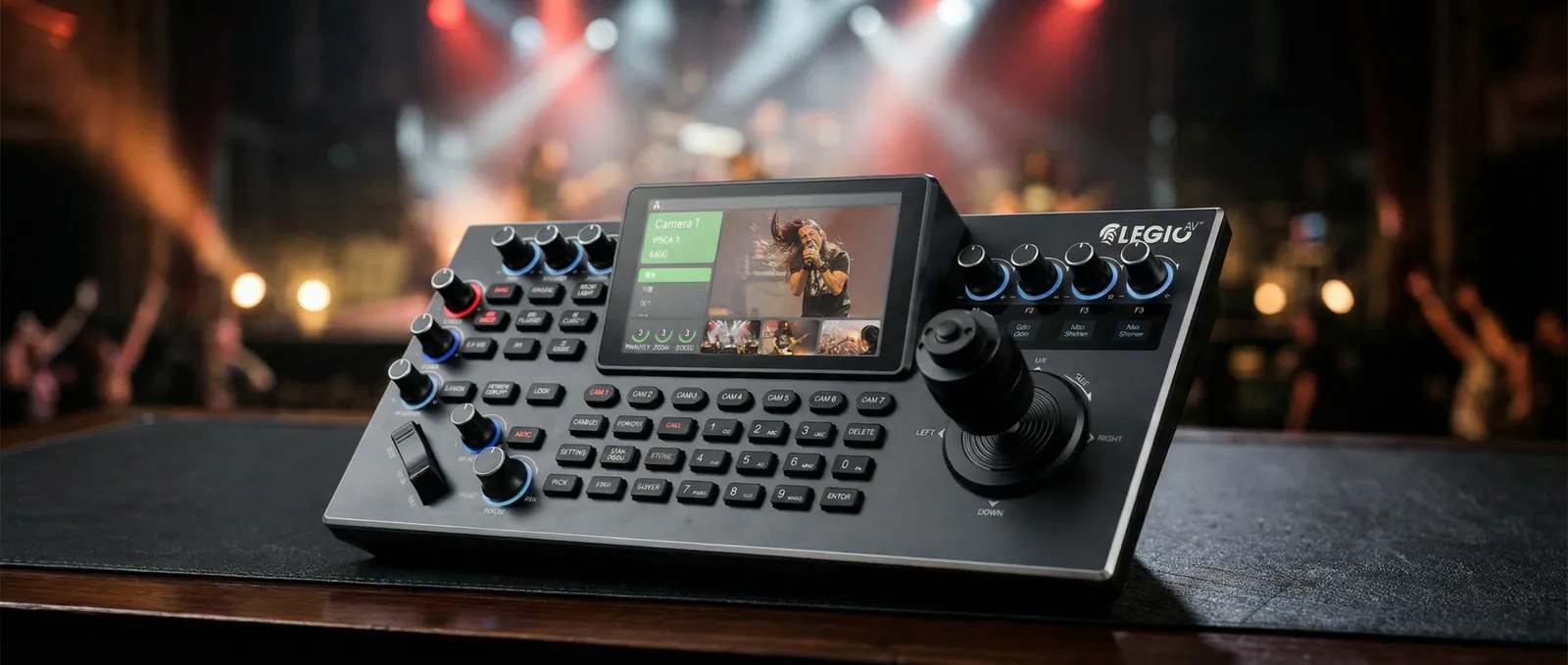

A 4D joystick, a 5.5-inch screen with live video preview, PoE, tally and both IP and serial protocols: the LegioAV PTZ controller brings the physical control of a professional gallery into a compact desk at €999 ex. VAT. It drives PTZ cameras straight from a hardware surface, with no control computer required, and fits both recent camera fleets and existing serial infrastructure.
Pricing
At €999 ex. VAT, the LegioAV PTZ controller packs a 4D joystick, an integrated screen, live preview, PoE, tally and multi-protocol support into a complete desk, ready to deploy in a gallery or a fixed install.
Reliable physical control
A 4D joystick, a customizable 3D knob and backlit silicone buttons give the operator a real hardware control surface, more precise and more repeatable than a touch interface.
Built-in video preview
The 5.5-inch LCD shows the camera return right on the desk, which simplifies operation in a compact gallery, a corporate room or a house of worship.
Works with mixed fleets
The controller supports VISCA, VISCA over IP, VISCA TCP, ONVIF, Pelco-D and Pelco-P, over the network or serial RS-232 and RS-422/485, with NDI® HX2 and HX3 included and activated out of the box.
Designed for installation
PoE powering over a single network run, firmware updates from a USB drive and a compact desktop format (354 × 165 × 121 mm) make the install, maintenance and service straightforward.
Precision hardware control
- 4D joystick for smooth pan/tilt/zoom moves
- 3D knob with scaled rotation and customizable functions
- 5.5-inch colour LCD with live camera feed
- White and red backlit silicone buttons
Multi-camera operation
- Up to 1000 cameras managed
- 7 camera shortcuts and tally on up to 7 channels
- Up to 255 presets with position preview
- One-click control locking
Protocols & compatibility
- IP: ONVIF, VISCA over IP, VISCA TCP, NDI® HX2 and HX3 included (licence activated out of the box)
- Serial: VISCA, Pelco-D, Pelco-P
- RS-232 and RS-422/485 links
- Works with recent PTZ cameras and legacy fleets
Integration & operation
- RJ45 with PoE powering (IEEE 802.3af)
- HDMI output up to 4Kp30 Ultra HD
- Firmware updates via USB flash drive
- Compact desktop format, 354 × 165 × 121 mm
| Feature | User benefit |
|---|---|
| 4D joystick | Smooth pan, tilt and zoom control |
| Customizable 3D knob | Quick camera adjustments: scaled rotation, assignable functions |
| 5.5" built-in LCD | Framing preview without a mandatory external monitor |
| Up to 1000 network cameras | Suited to large installs and multi-room sites |
| 7 camera shortcuts | Instant access to the main cameras |
| 255 presets per camera | Fast, repeatable framing recalls |
| PoE 802.3af | A single network and power run at install |
| Tally on up to 7 channels | Integration into a multi-camera workflow |
| HDMI 4Kp30 output | Camera return on an external monitor |
| RS-232 / RS-422 / RS-485 | Compatible with existing serial installs |
Application examples combining the products above, in broadcast and live production contexts.
AV integrators
Standardize PTZ control across corporate rooms, auditoriums, houses of worship or multi-room installs.
For: Integrators and installers
Galleries and live production
Get reliable physical control, with presets, video preview and quick camera access during live shows.
For: Broadcast galleries and live production
Venue operators
Offer a tool that is simple to use, even by non-specialist teams, with no control computer to rely on.
For: Houses of worship, venues, campuses
Resellers and installers
Add a complete PTZ desk (4D joystick, screen, video preview, PoE, tally, multi-protocol) at €999 ex. VAT to their line-up.
For: AV resellers
Is the LegioAV controller compatible with every PTZ camera?
Can it be used without a computer?
Is the built-in screen 4K?
Is NDI included?
Can it be powered over PoE?
